X-one Plus MDT

DUAL CPU

The Primary CPU is a Freescale ARM CORTEX A8 iMX 53, 1 GHz processor with Hardware Graphic accelerator, OpenGL Hardware for 3D navigation and the ARM architecture allows this Device to supply a remarkable flexibility and efficiency in computing power, together with reduced power consumption.

Secondary CPU AITP (Automotive Intensive Task Processor) supplies the necessary functionalities in the automotive field, like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates.

The AITP is OTA programmable for remote automatic firmware upgrade, and is always powered ON; it can turn-ON and OFF the Device and all its peripherals.

IDEAL FOR FLEET MANAGEMENT AND JOB DISPATCHING

The Device represents the state-of-the-art device for job dispatching and fleets management, an ALL-IN-ONE powerful and compact solution.

Its HSUPA modem allows very reliable communication with operating headquarters. The vehicle is located by the high performance GPS U-Blox 6 receiver with 50 channels, and compatible with the European positioning system GALILEO. Both GPS and Modem modules can be powered ON and OFF regardless of Windows CE status.

  • Singapore taxi parts

    User Booking

  • Taxi support singapore

    Headquarters

  • Singapore taxi parts

    Mobile Data Terminal

An Hardware MUX Port is available which allows to send AT commands to the modem while the device is connected in Internet, for example to request connection status, signal diagnostic and modem statistics.

Taxi support singapore

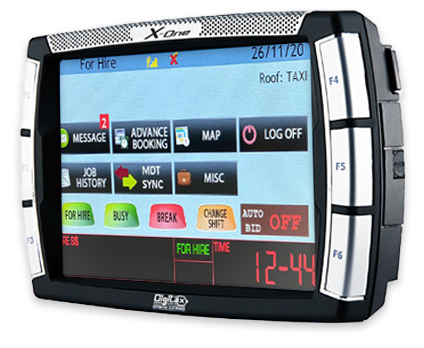

CUSTOMIZABLE USER INTERFACE
soon heng taximeters service soon heng taxi meter

CUSTOMIZABLE USER INTERFACE

7 inches 16:9 clear readable TFT Displays with 800x480 resolution

soon heng taxi meter

Ambient light sensor allows to choose an optimal brightness of the display in any environmental light

soon heng taxi meter
soon heng taxi meter

Touch screen controller and 6 keys with LEDs

soon heng taxi meter

The power key is a Smart Power Button, completely programmable and used to perform several important tasks such as:

 Taxi Rooftops Singapore
  • Normal press to start from system disk

  • Long press to start from microSDHC card

  • Long press to shutdown CE safely

DOUBLE BOOT FEATURE
LED Signage Singapore

DOUBLE BOOT FEATURE

Through this powerful functionality is possible to restore and to update the entire system anytime, starting from user application up to the complete operating system and all the CPU firmwares.

The system is able to boot from two different microSDHC, used for large data storage (large maps, images, movies, logs) and for service (system initialization or restore).

STEALTH MODE
LED Signage Singapore

STEALTH MODE

Stealth mode is a special operating mode in which the system is working but the display is OFF. This feature can be useful in several situations:

  • LED Signage Singapore

    Driver Control: System has also the wake up on ring feature, so at the central it is possible to remotely turn-ON the device (also in stealth mode so nobody can see that it is starting) in order to check vehicle position, internal audio listening and other data.

  • Ghost Mode: It is possible to set the device so that after pressing the shut down button the system goes on stealth mode instead of turning OFF. This feature is useful if you want the device to remain always ON (it turns OFF only the display, reducing power consumption) or in an alarm situation.

  • Alarm managing: If system is OFF and alarm button is pressed the system can be started in stealth mode, so nobody can see that the system starts. On this special start the system can be programmed for example to send an alarm message to the central, GPS position or also screenshots or audio.

HIGH AVAILABILITY & INPUTS AND OUTPUTS
LED Signage Singapore LED Signage Singapore

HIGH AVAILABILITY

Automatically Charged External UPS Battery System

  • Withstand Glitches at Car Start, or Power Loss

AITP Processor

  • In Case of Sudden Disconnection, It Allows Lead Time for User Applications and Windows to Close Gracefully and Safely

INPUTS AND OUTPUTS

Wide Range of Communication Channels

  • Two Hi-Speed USB 2.0 Host

  • One USB OTG / Device

  • Up to 7 Serial Ports

Special Programmable Digital Inputs and Outputs

  • Control Devices and Read Signals Coming from Generic

  • External Equipment
